For heating and rest? Yes. Just sit back, rest, relax or just wait. For benches with top desk made of solid oak, beech or of artificial stone a load is no problem. Proven clever combination of design, performance and utility features will be appreciated in the implementation of residential development and public spaces.

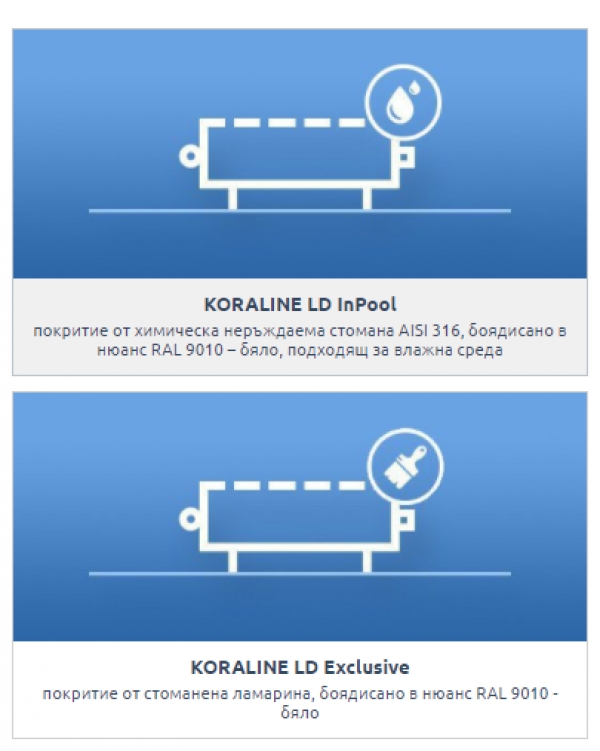

KORALINE LD Exclusive was designed for premises intended for relaxation. The bench is fitted with a covering desk that can withstand static load without problems and is also suitable to sit on. Attention, the covering desk must be ordered separately.  The desks are positioned on the convector and fixed to the convector structure. The KORALINE LD Exclusive convector can be installed for example in halls or winter gardens. For use in pool areas we recommend the order is placed for complete stainless steel finish – so called pool version.

• natural convection convectors
• wide range of types and designs offered
• easy to clean and maintain

Developed for low temperature heating systems, high efficiency guaranteed also at very low temperature gradients, e.g. 35/30 °C. Ideal everywhere where the heat source is a heat pump, a solar system, a condensation boiler or as a supplementary source of heat for fl oor heating, particularly during a transitional period or when an instant temperature increase in the room is required. At the same time suitable for rooms' dry-cooling during the summer months. All of this with the benefi ts of the Optimized Convection system – low noise and low fan input while maintaining maximally attainable performances.

Univeral use – heating and dry-cooling!

Wall-mounted convector with forced convection KORAWAL WI 45/11

height 45 cm, depth 11 cm

• used for heating or dry-cooling
• high efficiency even at low temperatures of the heating system
• patented design solutions
• high-perfomance, low energy and quiet fans
• the same regulation as the one for floor convectors KORAFLEX FV and free standing convector with forced convection KORALINE LV
• two-pipe system
• right bottom connection
•  possibility of control through BMS
• the convector is intended for dry environment

Exclusive free standing convectors design enhanced by the state-of-theart technologies. Universal design of the free standing convectors with high efficiency also at low temperature gradients. This prederminates them as ideal system to be heated by heat pumps.

• high efficiency at low temperature of the heating water
• also suitable for installations with a heat pump
• energy efficient fans with an electric engine and a minimal input
• immediate reaction to temperature changes in the room
• very quiet operation

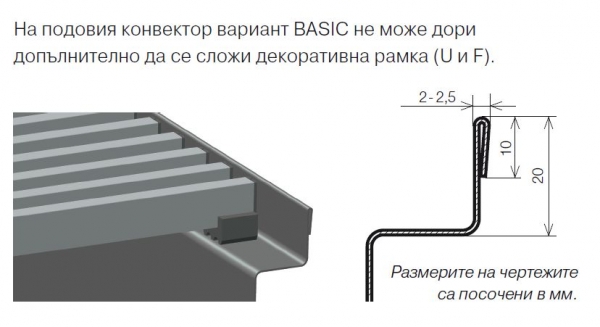

Take care with every detail and choose from a wide range of floor grille of the floor convectors, so that they are the top complement of the interior. Intentionally visible or quietly blending into its environment. The grilles are the same for all types of the floor convectors: KORAFLEX FK, FK InPool, FV, FV InPool, FI and FW. Wide selection of lengths, special surface finishes in the rolling or longitudinal designs.

Take care with every detail and choose from a wide range of floor grids of the floor convectors, so that they are the top complement of the interior. Intentionally visible or quietly blending into its environment. The grille are the same for all types of the floor convectors: KORAFLEX FK, FK InPool, FV, FV InPool, FI and FW. Wide selection of lengths, special surface finishes in the rolling or longitudinal designs.

Rolling                                                         Linear*

Take care with every detail and choose from a wide range of floor grids of the floor convectors, so that they are the top complement of the interior. Intentionally visible or quietly blending into its environment. The grids are the same for all types of the floor convectors: KORAFLEX FK, FK InPool, FV, FV InPool, FI and FW. Wide selection of lengths, special surface finishes in the rolling or longitudinal designs.

There are places with higher heat loss. In those places where it is necessary to increase efficiency while maintaining top design, select KORAFLEX convectors with fan and optimized convection.

• used for heating
• high heat output
• very quiet operation
• the possibility of control through BMS
• Control 12V and 24V

The modern housing demands space, airiness and light. Floor convectors occupy no place in the interior while ensuring perfect thermal comfort even in places with higher heat losses such as French windows and accesses to balconies. The KORAFLEX FI/FW floor convectors with the fan will achieve not only pleasant interior temperature in winter, but also nice cooling in summer.

• high heating and cooling output
• possibility of control through BMS (Building Manager System)
• very quiet operation
• energy saving fans

KORAFLEX FK and KORAFLEX FK InPool convectors are intended for embedding in floors, especially in places prohibiting installation of higher radiators, e.g. in front of french windows, winter garden entries, hall entrances, exits etc., in public buildings (shops, administrative buildings etc.), as well as in residential houses. Various coloured designs of the floor grids are making convectors suitable for each interior.

• Natural convection convectors
• Wide type and design range
• Easy to clean and maintain
• The floor convectors are intended for dry environment, for humid environment use version InPool
