RADIK VKL is a steel panel radiator in VENTIL KOMPAKT version which allows left bottom connection to a pressurized heating system. There are two upper and two lower hangers welded at the back of the radiator. Radiators in length 1800 mm and more have six hangers.

RADIK VKL - Steel panel radiator with left bottom connection

Additional Info

Technical Data

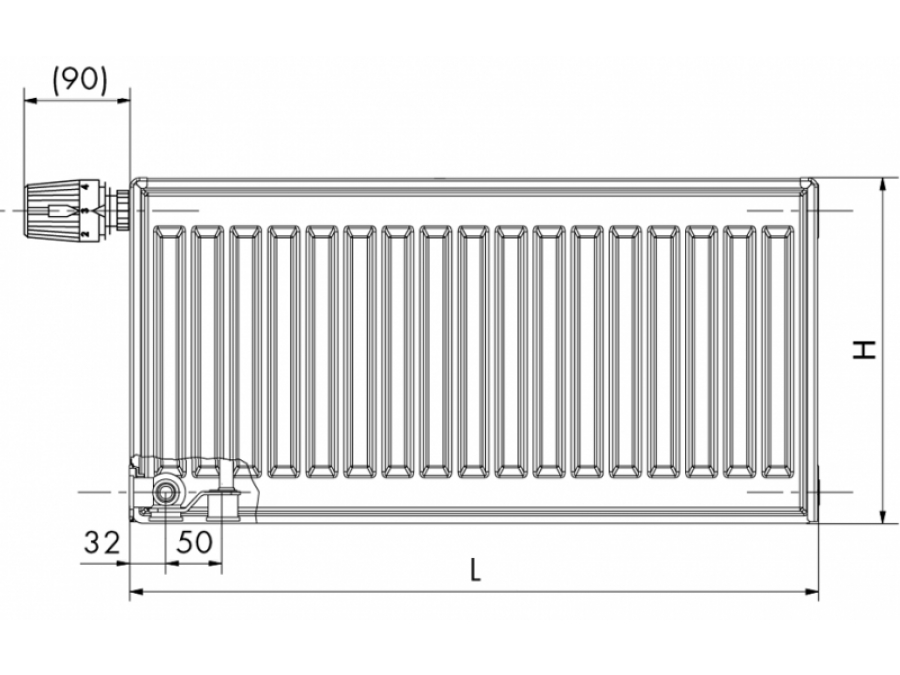

Height (H): 300, 400, 500, 600, 700, 900 mm
Length (L): 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2300, 2600, 3000 mm
- Type 10: 47 mm
- Type 11: 63 mm
- Type 21: 66 mm
- Type 22: 100 mm
- Type 33: 155 mm
Connecting pitch: 50 mm
Connecting thread: 6 x G½ inside
Highest allowed working pressure: 10 bar
Highest allowed working temperature (°C): 110 °C
Radiator connection: left bottom
Pressure Loss: In case of two-pipe heating system it is necessary to calculate the correct level of valve presetting and specify this in the project documentation to ensure a proper function of the heating system. This must be kept by the installer during installation of the heating system.
